Druckregler, ferngesteuert (Volumenbooster) - Futura-Baureihe 1, 2 & 4 | bis 14600 l/min
Artikel filtern
| Baureihe | Befestigungswinkel | Druckregelbereich | Durchfluss* | Eingangsdruck | Gewicht | Gewinde | Gewinde Steueranschluss | H | H1 | Koppelpaket | Koppelpaket mit Wandkonsole | L | Manometeranzeige | Steueranschluss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Futura 4 | W 4 F | 0,5 - 16 BAR | 14600 L/MIN | max. 16 BAR | 1,1 KG | G 3/4" | G 1/4" | 145 MM | 91 MM | KP 4 F | KPW 4 F | 85 MM | 0 - 25 BAR | G 1/4" |
Verfügbar
| Baureihe | Befestigungswinkel | Druckregelbereich | Durchfluss* | Eingangsdruck | Gewicht | Gewinde | Gewinde Steueranschluss | H | H1 | Koppelpaket | Koppelpaket mit Wandkonsole | L | Manometeranzeige | Steueranschluss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

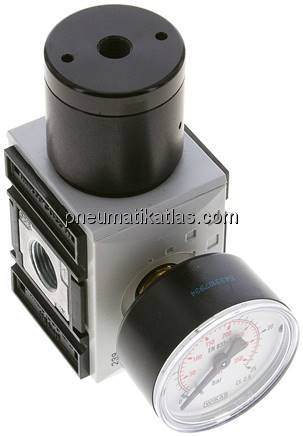

| Futura 1 | W 1 F | 0,5 - 16 BAR | 2700 L/MIN | max. 16 BAR | 0,39 KG | G 3/8" | G 1/8" | 105 MM | 72 MM | KP 1 F | KPW 1 F | 52 MM | 0 - 25 BAR | G 1/8" |
Verfügbar
| Baureihe | Befestigungswinkel | Druckregelbereich | Durchfluss* | Eingangsdruck | Gewicht | Gewinde | Gewinde Steueranschluss | H | H1 | Koppelpaket | Koppelpaket mit Wandkonsole | L | Manometeranzeige | Steueranschluss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Futura 4 | W 4 F | 0,5 - 16 BAR | 14600 L/MIN | max. 16 BAR | 1 KG , 1,1 KG | G 1" | G 1/4" | 145 MM | 91 MM | KP 4 F | KPW 4 F | 85 MM | 0 - 25 BAR | G 1/4" |
Verfügbar
| Baureihe | Befestigungswinkel | Druckregelbereich | Durchfluss* | Eingangsdruck | Gewicht | Gewinde | Gewinde Steueranschluss | H | H1 | Koppelpaket | Koppelpaket mit Wandkonsole | L | Manometeranzeige | Steueranschluss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

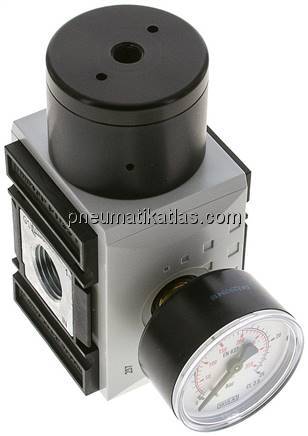

| Futura 2 | W 2 F | 0,5 - 16 BAR | 6750 L/MIN | max. 16 BAR | 0,65 KG | G 1/2" | G 1/4" | 122 MM | 82 MM | KP 2 F | KPW 2 F | 63 MM | 0 - 25 BAR | G 1/4" |
Verfügbar
| Baureihe | Befestigungswinkel | Druckregelbereich | Durchfluss* | Eingangsdruck | Gewicht | Gewinde | Gewinde Steueranschluss | H | H1 | Koppelpaket | Koppelpaket mit Wandkonsole | L | Manometeranzeige | Steueranschluss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Futura 1 | W 1 F | 0,5 - 16 BAR | 2700 L/MIN | max. 16 BAR | 0,41 KG | G 1/4" | G 1/8" | 105 MM | 72 MM | KP 1 F | KPW 1 F | 52 MM | 0 - 25 BAR | G 1/8" |
Verfügbar
